HIWIN Replacement KK Single Axis Robot KK Travel Linear Module KK6010P-150A1-F0 KK6020

Product Categories
Jiangsu Zane Machinery Technology Co.,ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

HIWIN Replacement KK Single Axis Robot KK Travel Linear Module KK6010P-150A1-F0 KK6020

Brand Name : ZANE

Model Number : KK60

Certification : CE，ISO

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 100,000 pcs per month

Delivery Time : Negotiation

Packaging Details : Standard export carton packing, wooden case, foam board inside for protection.

Product name : Linear motion actuator KK60

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, CNC PART

Weight (KG) : 8

Core Components : Linear actuator

Material : Stainless steel

Application : Cnc Machining Parts

Feature : Long Operating Life

Sample : Avaliable

Contact Now

KK Single Axis Robot KK Travel Linear Module KK6010P-150A1-F0 KK6020

The KK single axis robot linear module integrating a ball screw and linear guideway forms a modularized product. The modularized design can help customers save time, cost and system inspection. Therefore, installation efficiency and a space saving design are also promoted.

HIWIN Replacement KK Single Axis Robot KK Travel Linear Module KK6010P-150A1-F0 KK6020

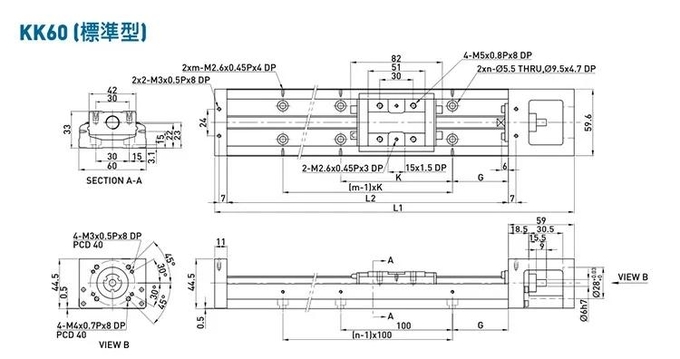

Length of guide

L2(mm)

Full length

L1(mm)

 Maximum stroke(mm) G(mm) K(mm) n m Weight(kg)
A1Slide seat A2 Slide seat A1Slide seat A2Slide seat
150 220 60 - 25 100 2 2 1.4 -
200 270 110 - 50 100 2 2 1.7 -
300 370 210 135 50 200 3 2 2.3 2.6
400 470 310 235 50 100 4 4 3.2 3.2
500 570 410 335 50 200 5 3 3.5 3.8
600 670 510 435 50 100 6 6 4.1 4.5

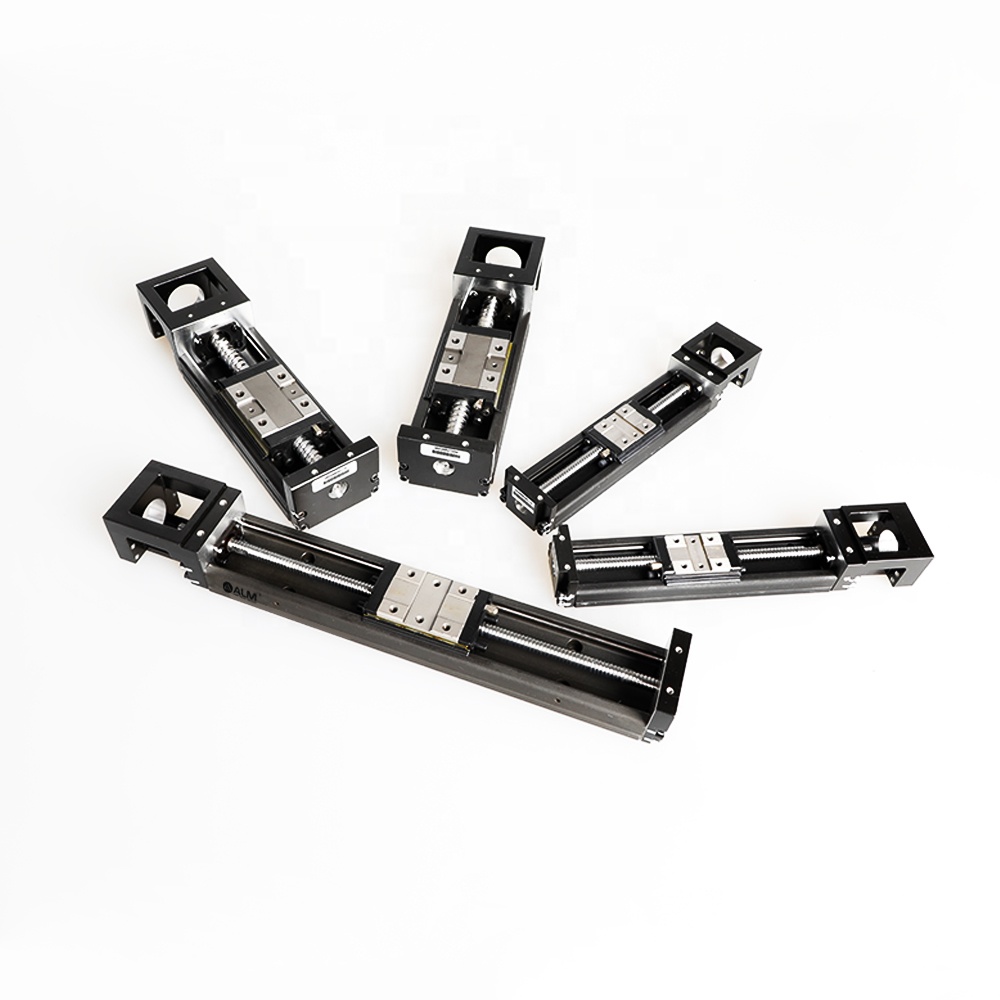

KK Linear Module Details Show And Advantages

●High accuracy ●High stiffness ●An integrated system

●Compact and lightweight ●Complete line of accessories

●Easy installation and maintenance

HIWIN Replacement KK Single Axis Robot KK Travel Linear Module KK6010P-150A1-F0 KK6020
